Roof Drip Edge Guide: What It Is and How to Calculate How Much You Need
Drip edge is a small, often overlooked roofing component that plays a big role in preventing water damage at the roof’s edges. It’s inexpensive per piece, but figuring out the right quantity requires knowing exactly which edges need it and how much overlap to budget for. This guide covers what drip edge does and exactly how to calculate the linear footage — and piece count — for your project.
What Drip Edge Does

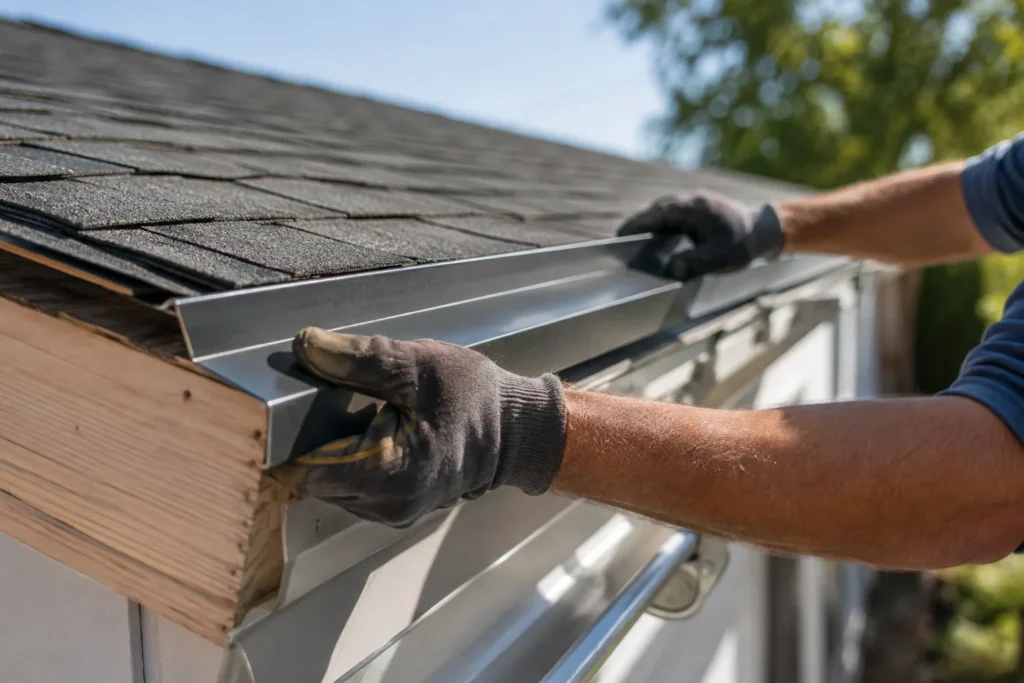

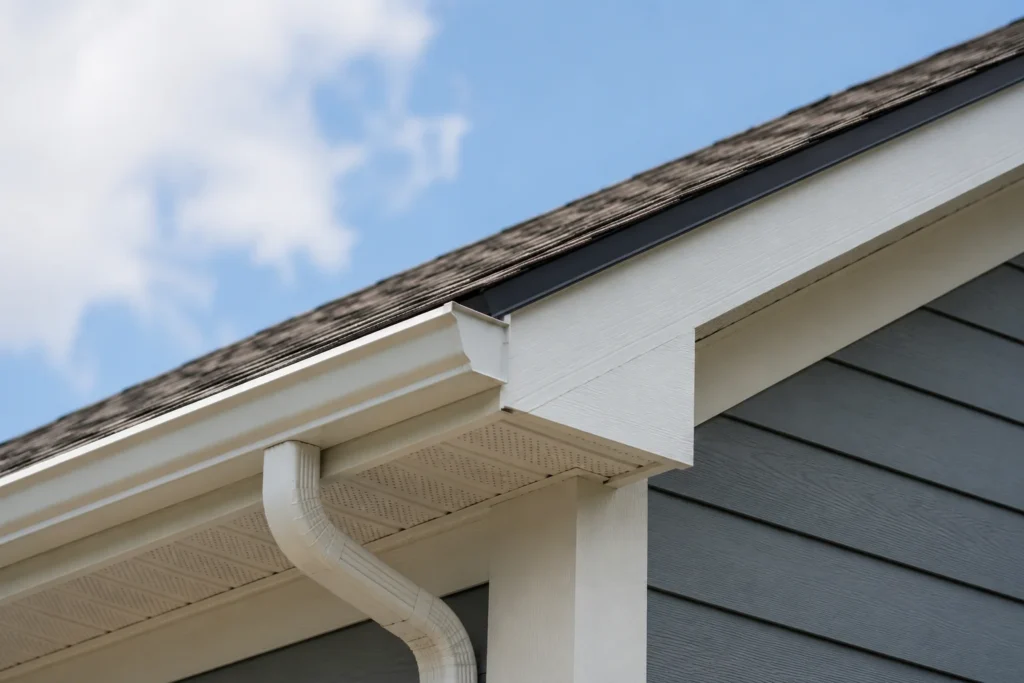

Drip edge is a metal flashing installed along the roof’s edges that directs water away from the fascia and into the gutters, rather than letting it run down behind them and rot the wood underneath. It’s a small detail, but skipping it or installing it incorrectly is a common cause of fascia and soffit rot years down the line.
Every Edge Needs It — Not Just the Eaves
A common misconception is that drip edge only goes along the horizontal eaves (the low edges of the roof). In reality, drip edge is installed along every roof edge exposed to water runoff — both the horizontal eaves and the sloped rake (gable) edges. Skipping the rakes leaves those edges vulnerable to wind-driven rain getting up under the shingles.
Calculating Total Linear Footage
Start by measuring the combined length of all horizontal eave edges, then separately measure the combined length of all sloped rake edges. Add these two totals together to get your total linear footage of drip edge needed.
Converting Footage to Pieces, With Overlap
Drip edge is sold in fixed-length pieces, most commonly 10 ft lengths. Because pieces need to overlap at each joint (typically around 2 inches) and get trimmed at corners and hips, add a waste factor — 5% is a reasonable default — to your raw linear footage before dividing by piece length to get your final piece count.
Always round the final piece count up, since a partial piece still requires purchasing a full length.
Worked Example
80 ft of total eave length, 60 ft of total rake length, 10 ft pieces, 5% waste factor.
Total linear footage: 80 + 60 = 140 ft.
With waste: 140 × 1.05 = 147 ft.
Pieces needed: 147 ÷ 10 = 14.7 → round up to 15 pieces.
Common Mistakes to Avoid
- Only measuring the eaves and forgetting the rake (gable) edges also need drip edge.
- Not accounting for overlap at joints when converting linear footage to piece count.
- Rounding down on piece count instead of up, leaving a gap at the last section of an edge.
- Installing drip edge in the wrong order relative to underlayment (it should go under underlayment at the eaves, over it at the rakes, per most manufacturer specs).
Related Guidence
Frequently Asked Questions
Do I need drip edge on both the eaves and the rakes?
Yes — drip edge is installed along every roof edge exposed to water runoff, which includes both the horizontal eaves and the sloped rake (gable) edges, not just the eaves alone.
How much overlap should drip edge pieces have?
Drip edge pieces are typically overlapped about 2 inches at each joint, which is part of why a 5% waste factor on the total linear footage is a reasonable buffer when ordering material.
What length do drip edge pieces come in?
Drip edge most commonly comes in 10 ft lengths, though some suppliers offer other standard lengths — always confirm with your specific supplier before calculating piece count.
