Fence Gate Hardware Guide: Hinges, Latches, and Drop Rods

Introduction

Gate hardware count comes down to two things: how many gate leaves you have, and how wide each one is. This small detail is easy to underestimate — a gate that sags within its first year is often traced back to insufficient hinge support for its width. This guide covers the standard rules for hinges, latches, and the extra hardware double gates require.

For a complete suite of fencing estimating tools, visit the fencing calculators hub .

Hinges Scale With Gate Width

Every leaf needs its own set of hinges. The number of hinges depends primarily on the gate leaf width and weight.

A gate leaf under 4 feet wide typically holds fine on 2 hinges. Anything wider needs a third hinge to stop it from sagging over time — the extra weight and leverage of a wider leaf puts more stress on the top hinge in particular, which is usually the first to fail on an under-hardwared gate.

For help with hardware estimation, use the Fence Gate Hardware Calculator .

Single vs. Double Gates

A single gate needs one set of hinges plus a latch.

A double gate (two-panel opening) adds a wrinkle: one leaf is usually active (with the latch) and the other is passive, held by a drop rod or cane bolt into the ground or a header.

Why the Drop Rod Matters

Double gates need a drop rod that single gates don’t. Without a drop rod, the passive leaf of a double gate has nothing holding it in place except its connection to the active leaf through the latch — which puts uneven stress on the hardware and can work the passive leaf loose over time.

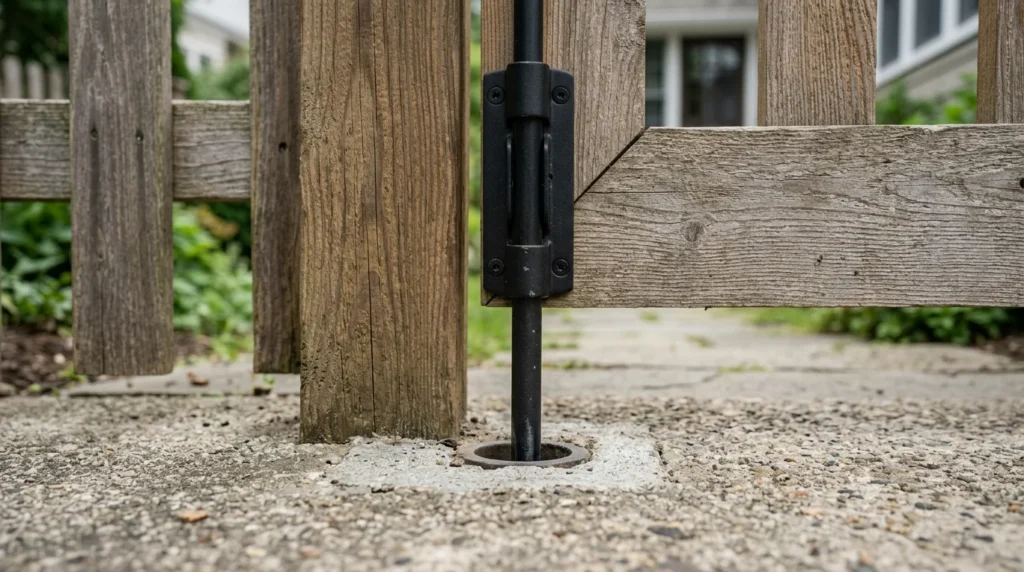

The drop rod locks into a sleeve set in the ground (or a header above, for gates with an overhead frame), keeping that leaf steady while the active leaf opens and closes independently.

Drop rod types:

• Ground drop rod: Inserts into a ground sleeve

• Header drop rod: Inserts into a header above the gate

• Cane bolt: Smaller version for lighter gates

Hardware Types and Applications

Choosing the Right Hardware

Hinge selection factors:

• Gate weight and material

• Gate width

• Usage frequency

• Climate (rust-resistant coatings in coastal areas)

• Aesthetic preference (decorative vs. utilitarian)

Latch selection factors:

• Gate width and weight

• Security requirements

• Self-closing requirements (pool codes)

• Weather exposure

Worked Example

The project:

• 1 single gate (4 ft wide)

• 1 double gate (widest leaf 5 ft)

Single gate:

4 ft leaf → 2 hinges + 1 latch

Double gate:

5 ft widest leaf → 3 hinges per leaf × 2 leaves = 6 hinges
1 latch (active leaf)
1 drop rod (passive leaf)

Total hardware:

8 hinges, 2 latches, 1 drop rod

Gate Hardware Installation Guidelines

Hinge placement:

• Top hinge: Within 6 inches of the top of the gate

• Bottom hinge: Within 6 inches of the bottom of the gate

• Middle hinge: Centered between top and bottom (for gates over 4 ft wide)

Latch placement:

• Typically at a comfortable reach height (36–42 inches)

• Aligned with the catch on the receiving post

Drop rod placement:

• Centered on the passive leaf

• Aligned with the ground sleeve

Common Mistakes to Avoid

• Using only 2 hinges on a gate leaf wider than 4 feet, leading to sagging over time

• Forgetting the drop rod on a double gate’s passive leaf

• Assuming both leaves of a double gate need a latch, when only the active leaf typically does

• Not accounting for extra hardware weight capacity needed on solid privacy panel gates versus open picket gates

• Using non-galvanized hardware in areas with high moisture or coastal exposure

• Installing hinges without proper anchoring into solid wood or metal framing

Important Limitations

Estimates Are Not Construction Specifications

Gate hardware requirements vary by gate weight, material, and application. Always verify with your supplier and local building codes.

For pool gates:

Self-closing and self-latching hardware is typically required for pool safety. Check local codes.

Frequently Asked Questions

How many hinges does a wide gate need?
Gate leaves up to 4 feet wide generally need 2 heavy-duty hinges. Leaves wider than 4 feet, or gates carrying extra weight like solid privacy panels, should use 3 hinges to prevent sagging.

Do double gates need extra hardware beyond hinges and a latch?
Yes — double gates need a drop rod (also called a cane bolt) on the inactive leaf so it can be locked into a sleeve in the ground or a header, keeping that leaf steady while the active leaf opens and closes.

What’s the difference between a drop rod and a cane bolt?
They serve the same purpose, but a drop rod typically refers to a heavier-duty version for larger gates, while a cane bolt is a smaller version for lighter gates.

Do all gates need self-closing hinges?
No — self-closing hinges are typically required by code for pool gates and some commercial applications. Check your local requirements.

Can I use wood screws to attach gate hinges?
For wood gates, use carriage bolts that pass through the gate frame for maximum strength. Standard wood screws are not sufficient for heavy gates.

How do I calculate gate hardware for my project?
Use the Fence Gate Hardware Calculator for an instant estimate.
