Attic Ventilation Guide: How Many Roof Vents Do You Need?

Introduction

Attic ventilation is easy to get wrong in both directions — too little airflow traps heat and moisture that can warp decking and shorten shingle life, while poorly balanced venting (all exhaust, no intake, for example) doesn’t fix the problem no matter how many vents are added. This guide covers the standard trade ratios used to size attic ventilation correctly and explains why balance between intake and exhaust matters as much as total vent count.

For a complete suite of roofing estimating tools, visit the roofing calculators hub .

The 1:150 and 1:300 Rules

Attic ventilation is sized off the attic’s floor area using a simple ratio.

NFVA stands for Net Free Ventilating Area — the actual open area of a vent that allows air to pass through (not the total vent size, which includes louvers, screens, and framing).

Formula:

Required NFVA (sq ft) = Attic area ÷ Ratio
Required NFVA (sq in) = Required NFVA (sq ft) × 144

Example:
1,500 sq ft attic, 1:300 ratio.

Required NFVA: 1,500 ÷ 300 = 5 sq ft = 720 sq in

For help with this calculation, use the Roof Vent Calculator .

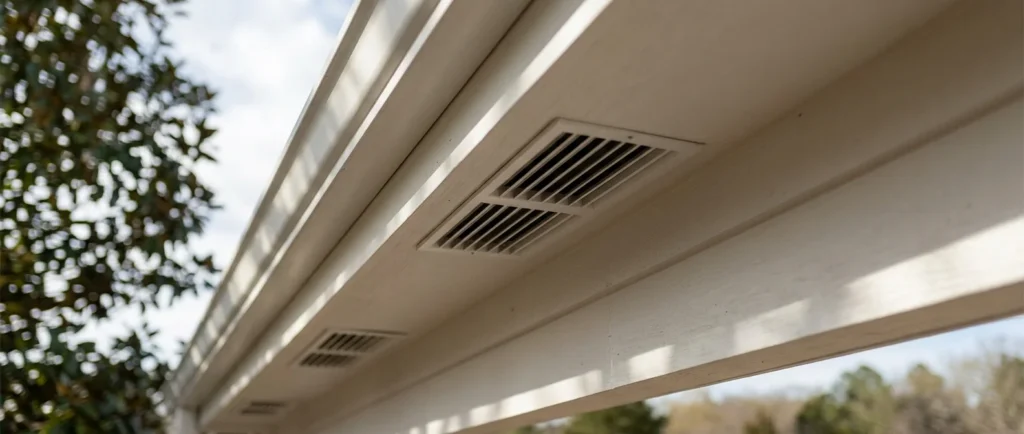

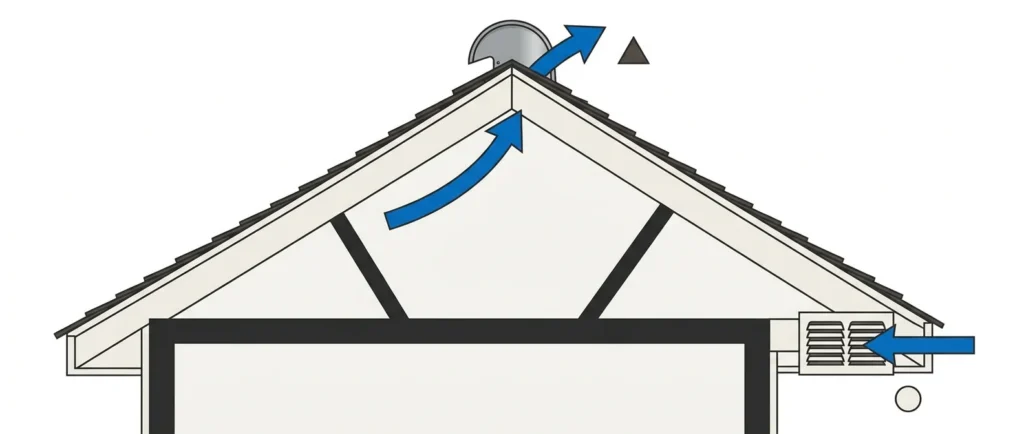

Why Intake and Exhaust Must Be Balanced

Most building codes and manufacturers require a roughly 50/50 split between intake vents and exhaust vents.

Why balance matters:

• Air must enter low and exit high for actual airflow

• Too much exhaust + too little intake = air drawn from the house

• Too much intake + too little exhaust = air won’t exit properly

Formula:

Intake NFVA = Required NFVA × 0.5
Exhaust NFVA = Required NFVA × 0.5

Example:
720 sq in total NFVA.

Intake: 360 sq in
Exhaust: 360 sq in

Converting NFVA to Vent Count

Formula:

Vent count = Required NFVA ÷ NFVA per vent (round up)

*NFVA varies by manufacturer. Always check the specific product rating.

Example:
360 sq in exhaust needed, 50 sq in per static vent.

360 ÷ 50 = 7.2 → round up to 8 exhaust vents
360 sq in intake needed, 40 sq in per soffit panel.
360 ÷ 40 = 9 soffit panels

Common Attic Ventilation Problems

Ridge Vent vs. Static Vent Comparison

Worked Example

The project:

• Attic area: 1,500 sq ft

• Vapor barrier: Yes

• Ventilation rule: 1:300

• Vent type: Static roof vents (50 sq in each)

• Soffit vents: 40 sq in each

• Balance required: 50/50

Step 1: Required NFVA

1,500 ÷ 300 = 5 sq ft = 720 sq in

Step 2: Split 50/50

Intake: 720 × 0.5 = 360 sq in
Exhaust: 720 × 0.5 = 360 sq in

Step 3: Exhaust vents (50 sq in each)

360 ÷ 50 = 7.2 → round up to 8 vents

Step 4: Intake vents (soffit, 40 sq in each)

360 ÷ 40 = 9 soffit panels

Common Mistakes to Avoid

• Using the 1:300 ratio without confirming a vapor barrier is actually present and venting is balanced

• Installing exhaust vents without adding matching intake, which can pull conditioned air from the living space instead

• Calculating total vent count without splitting it into the required intake/exhaust balance

• Using a generic NFVA-per-vent figure instead of checking the actual product spec, which varies between models

• Blocking soffit vents with insulation during installation

Important Limitations

Estimates Are Not Construction Specifications

Ventilation requirements vary by climate zone, attic configuration, and local building codes. Always consult your local building department.

Frequently Asked Questions

What is the 1:150 vs 1:300 rule for attic ventilation?
It is the ratio of attic floor area to required net free ventilating area. Use 1:150 (1 sq ft of NFVA per 150 sq ft of attic) as a conservative default, or 1:300 if the attic has a vapor barrier and the intake/exhaust is properly balanced.

Should intake and exhaust vents be equal?
Yes, most building codes and manufacturers require a roughly 50/50 split between intake (usually soffit vents) and exhaust (usually ridge or static roof vents) so air flows continuously from low to high points in the attic.

What happens if an attic is under-ventilated?
Poor ventilation traps heat and moisture in the attic, which can warp roof decking, promote mold growth, and significantly shorten the lifespan of asphalt shingles from the underside.

How much NFVA does a ridge vent provide?
A ridge vent typically provides about 18 sq ft of NFVA per linear foot, though this varies by manufacturer.

How many roof vents do I need?
Use the Roof Vent Calculator for an instant estimate based on your specific attic area.

Ready to calculate your roof vents? Use the free Roof Vent Calculator .

How This Relates to Other Roofing Calculations

Ventilation is the final component of a complete roofing system:

• Shingles: Primary roof covering (see shingles guide )

• Underlayment: Secondary water barrier (see underlayment guide )

• Drip edge: Edge protection (see drip edge guide )

• Gutters: Water management (see gutter guide )

• Metal panels: Alternative to shingles (see metal panel guide )

• Ventilation: Attic airflow (this guide)

For cost estimation, see the roofing cost guide .
