Concrete Column & Pier Guide: How to Calculate Sonotube Volume

Introduction

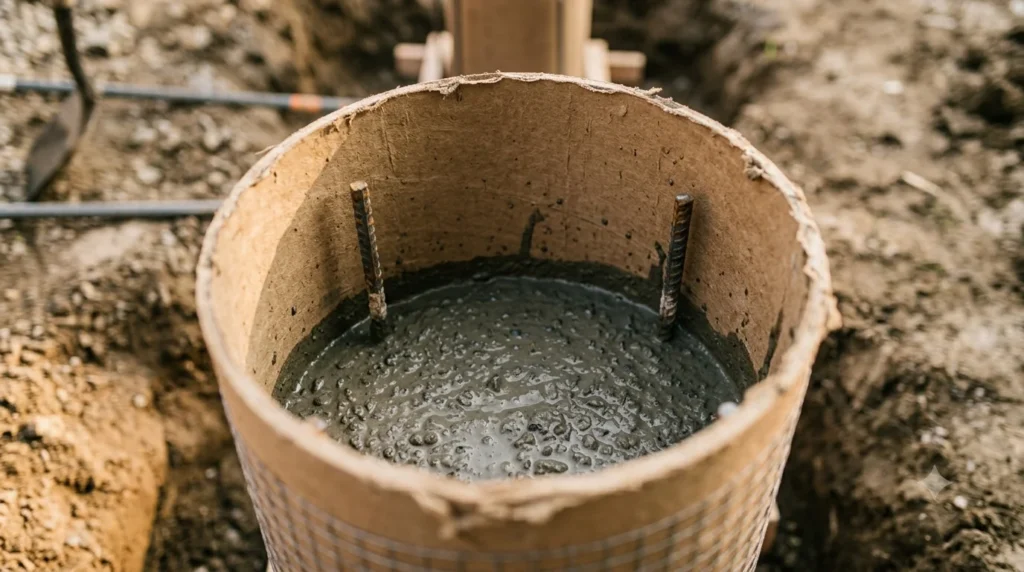

Round concrete forms — Sonotubes for deck piers, column forms for porch supports — don’t use the simple length × width × height math of a slab. They use cylinder volume, which behaves differently: a change in diameter affects total volume far more than the same change in height. This guide covers the cylinder volume formula and a key distinction between deck piers and fence post footings that’s easy to get wrong.

For related project planning, see our concrete calculators page, footing guide , and fencing calculators .

Why Cylinders Use Different Math Than Slabs

Cylinder volume equals π times the radius squared, times the height. Because radius is squared in this formula, doubling the diameter of a tube roughly quadruples its volume — while doubling the height only doubles it.

Formula:

π × (Radius)² × Height = Volume (cubic feet)
π × (Diameter/2)² × Height = Volume (cubic feet)

This is why it pays to double-check the tube size carefully before ordering concrete for a job with more than a couple of piers; a mistake in diameter has an outsized effect on total volume compared to the same-sized mistake in height.

Working With Common Tube Sizes

Example:
An 8-inch tube holds about 0.035 cubic yards of concrete per foot of height, so a 4-foot-deep pier needs roughly 0.14 cubic yards.

Larger tubes scale up quickly given the squared relationship between radius and volume — a 12-inch tube holds roughly 2.25× the volume per foot of an 8-inch tube, not just 1.5× as the diameter ratio alone might suggest.

For help with this calculation, use the Concrete Column & Pier Calculator .

Deck Piers vs. Fence Post Footings

This is the detail that trips up a lot of first-time estimators:

• Deck piers: The entire tube fills with concrete — there’s no post or other material displacing volume inside the form.

• Fence posts: The post itself takes up space inside the hole, so the concrete volume needed is less than the full cylinder.

If you’re estimating for fence posts rather than open deck piers, use the Fence Post Concrete Calculator instead, which subtracts the post’s volume from the total hole volume to give an accurate concrete quantity.

Worked Example

The project:

• 5 deck piers

• 12-inch diameter tube

• 4 feet deep

Step 1: Radius

12 in ÷ 2 = 6 in = 0.5 ft

Step 2: Volume per pier

π × (0.5)² × 4 = 3.14 cu ft

Step 3: Total for 5 piers

3.14 × 5 = 15.7 cu ft

Step 4: Cubic yards

15.7 ÷ 27 = 0.58 cu yd → round up to 0.75–1 cu yd

Step 5: Bag count (80 lb bags, example yield)

15.7 ÷ 0.60 = 26 bags (plus allowance)

Confirm yield with your specific product.

Common Mistakes to Avoid

• Using slab-style length × width × height math instead of cylinder volume for round forms

• Underestimating how much volume increases with diameter, since radius is squared

• Using the full-tube volume for a fence post footing without subtracting the post’s volume

• Not confirming the actual inside diameter of the tube, which can differ slightly from its labeled size

Important Limitations

Estimates Are Not Construction Specifications

This guide provides estimating methodology. Column and pier dimensions must comply with local building codes and engineering requirements.

For fence posts:

Use the Fence Post Concrete Calculator for fence post footings, as the post displaces concrete volume.

Frequently Asked Questions

How much concrete does an 8-inch tube need?
An 8-inch tube holds about 0.035 cu yd per foot of height. A 4-foot pier needs roughly 0.14 cu yd.

Do I need to subtract the fence post size from a pier calculation?
No — deck piers fill the whole tube with concrete. For fence posts, use the Fence Post Concrete Calculator .

Why does diameter matter more than height for round forms?
Cylinder volume uses radius squared, so diameter changes have a much larger effect than height changes.

Can I use this for concrete columns?
Yes — the formula is the same. Use the Concrete Column & Pier Calculator .

Can I calculate a circular slab with this?
No — a circular slab uses π × radius² × thickness. Use the Slab Calculator for flat circular slabs.
