Metal Roofing Panel Guide: How to Calculate Panels for Your Roof

Introduction

Metal roofing is ordered differently than shingles — by the panel, cut or specified to the exact slope length rather than sold in squares. That means the core question for a metal roofing estimate isn’t square footage, it’s how many panels, side by side, cover the building’s width. This guide explains the key concept that trips up most first-time metal roofing estimators: the difference between physical panel width and effective coverage width.

For a complete suite of roofing estimating tools, visit the roofing calculators hub .

Panels Are Ordered by Slope Length, Not by the Square

Unlike shingles, metal panels are usually cut or ordered to the exact slope length needed to run from eave to ridge, so there’s no horizontal seam partway up the roof.

This is one of the advantages of metal roofing — fewer seams means fewer potential leak points — but it also means your estimate depends on getting an accurate slope length measurement, not just a footprint.

For help with slope length, see the roof pitch guide .

Effective Coverage Width vs. Physical Panel Width

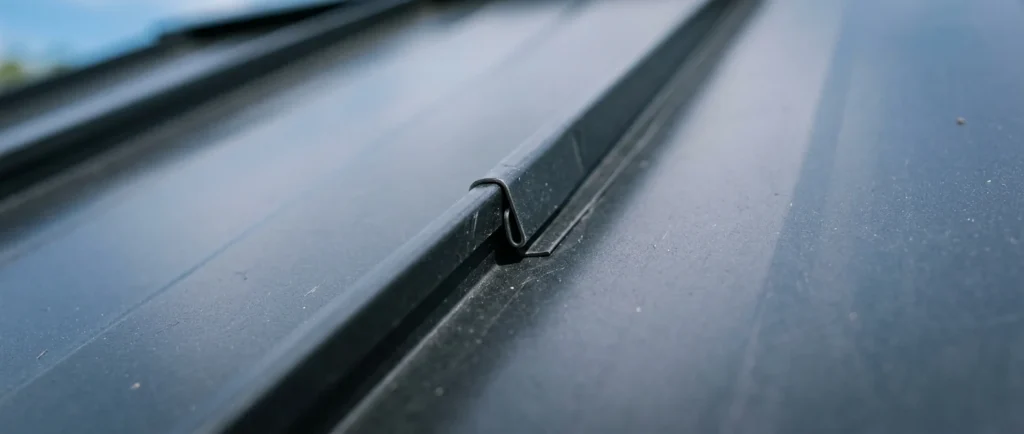

This is the detail that catches people off guard: a panel might be manufactured 40 inches wide but only cover 36 inches once installed, because adjacent panels overlap by a rib or two to create a watertight seal at each seam.

Key rule: Always use the effective coverage width — not the raw panel width — when calculating how many panels you need across the building.

For help with this calculation, use the Metal Roofing Panel Calculator .

Calculating Panel Count

Formula:

Raw panels = Roof width ÷ Effective coverage width (round up)
Panels with waste = Raw panels × (1 + Waste factor, if ordering extra)

Example:
30 ft roof width, 36″ effective coverage (3 ft), 5% waste.

Raw panels: 30 ÷ 3 = 10 panels
With waste: 10 × 1.05 = 10.5 → round up to 11 panels

Note: Each panel is ordered at the exact slope length needed to span from eave to ridge.

Why Metal Roofing Wastes Less

Metal roofing typically needs only 5–10% waste, considerably less than the 10–15% typical for shingles.

The main source of waste on a metal roof comes from valley and ridge trimming, not from the general field of the roof.

Additional Metal Roofing Components

For screw estimation, see the roofing nails guide (similar principles apply).

Panel Profile Comparison

Worked Example

The project:

• Roof width: 30 ft (eave to eave)

• Slope length: 18 ft (eave to ridge)

• Effective coverage: 36″ (3 ft)

• Waste factor: 5%

Step 1: Raw panels across width

30 ÷ 3 = 10 panels

Step 2: Add waste

10 × 1.05 = 10.5 → round up to 11 panels

Step 3: Order specification

11 panels × 18 ft length

Step 4: Ridge cap (if needed)

30 ft ridge ÷ 10 ft cap = 3 caps

Common Mistakes to Avoid

• Using the panel’s physical width instead of its effective coverage width, which under-orders panels

• Applying a shingle-level waste factor (10–15%) to metal roofing, which typically needs less

• Getting an inaccurate slope length measurement, resulting in panels ordered too short

• Not confirming the effective coverage spec for the specific panel profile being used, since it varies by manufacturer

• Forgetting ridge caps, valleys, and trims when calculating total material

Important Limitations

Estimates Are Not Construction Specifications

Metal panel coverage and installation must comply with manufacturer specifications and local building codes. Always verify with your supplier.

Frequently Asked Questions

What is the difference between panel width and effective coverage?
A panel might be manufactured 40 inches wide but only cover 36 inches once installed, because adjacent panels overlap by a rib or two to create a watertight seal. Always use the effective coverage width for calculations.

How much waste should I add for metal roofing?
Metal roofing typically needs only 5–10% waste, much less than shingles, since panels are cut to length rather than layered — the main waste comes from valley and ridge trimming.

Why is metal roofing ordered by slope length instead of squares?
Metal panels typically run in one continuous piece from eave to ridge, so they’re specified by the exact slope length needed rather than sold in pre-set square units like shingles.

What’s the most common metal panel width?
36″ effective coverage is standard for many standing seam and ribbed panels, but this varies by manufacturer and panel profile. Always confirm the spec sheet for your specific product.

How do I calculate slope length?
Use the slope-length multiplier from the roof pitch guide : Horizontal run × Pitch multiplier = Slope length.

Ready to calculate your metal panels? Use the free Metal Roofing Panel Calculator .

How This Relates to Other Roofing Calculations

Metal roofing is part of a complete roofing system:

• Shingles: Alternative to metal (see shingles guide )

• Pitch: Determines slope length (see pitch guide )

• Underlayment: Required under metal (see underlayment guide )

• Drip edge: Required for metal (see drip edge guide )

• Ventilation: Still needed for metal roofs (see vent guide )

For projects requiring cost estimation, see the roofing cost guide .
